Factory Lead Time

10 Weeks

Mounting Type

PCB, Through Hole

Package / Case

8-SIP Module, 4 Leads

Voltage - Input (Nom)

12V

Power - Output (Max)

1W

Power Dissipation (Max)

1W

Published

2013

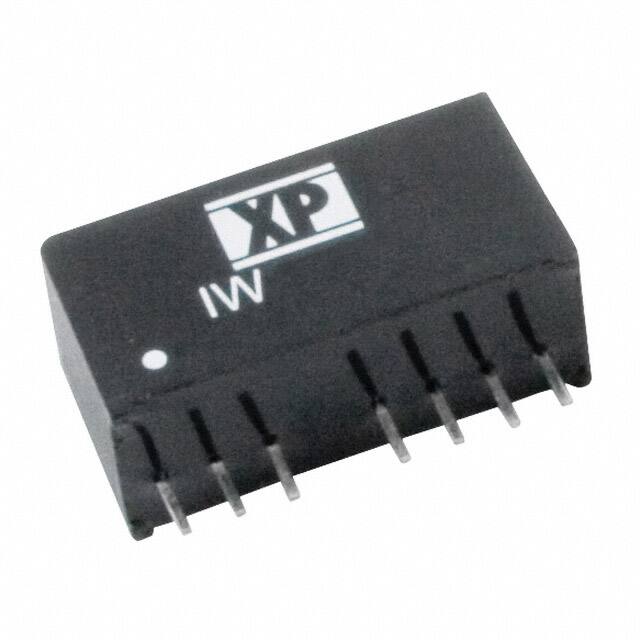

Series

IW (1W)

Packaging

Tube

Operating Temperature

-40°C~100°C With Derating

Size / Dimension

0.86Lx0.36W x 0.44 H 21.9mmx9.2mmx11.1mm

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Type

Isolated Module

Applications

ITE (Commercial)

Power Rating

1W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Depth

21.85mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-XSMA-T5

Number of Outputs

1

Efficiency

77%

Voltage - Isolation

1kV

Voltage - Input (Max)

18V

Operating Supply Voltage

12V

Trim/Adjustable Output

NO

Current - Output (Max)

111mA

Current - Output

111mA

Output Power

1W

Voltage - Output

9V

Current - Output 1

111mA

Nominal Output Voltage

9V

Max Input Voltage (DC)

18V

Min Input Voltage (DC)

9V

Features

SCP

Height

11.1mm

Width

9.2mm

RoHS Status

ROHS3 Compliant

REACH SVHC

No SVHC
